Mechanical Brakes

For simple, secondary applications we can offer mechanical brakes actuating force through a lever system or a spring with a manual adjustable tension.

Purely mechanical brakes are often sufficient for simple, secondary applications. The actuating force can be generated through a lever system or a spring with manually adjustable tension. Examples of this application are basic winding machines for foil, paper, cable, wire, and metal band or even strictly for holding applications such as servicing and maintenance work in fan construction or shipbuilding, as well as locking mechanisms in handling systems.

R&H 100.098.01

Braking force up to 880 N

Size (mm): axial ~ 135; radial ~ 240 Mass (kg): 3.3

The spring-actuated, manually adjustable brake caliper is designed as a holding and continuous slip brake for light to medium applications in general mechanical engineering.

R&H 100.099.01

Braking force up to 1,650 N

Size (mm): axial ~ 195; radial ~ 210 Mass (kg): 3.7

This brake is used in handling systems and general-purpose mechanical engineering.

R&H 200.096.01

Braking force up to 5,000 N

Size (mm): axial ~ 285; radial ~ 290 Mass (kg): 9.3

The spring-actuated, manually adjustable brake caliper is designed as a holding and continuous slip brake for light to medium applications in general mechanical engineering.

R&H 350.090.01

Type R&H 350.090.01
braking force up to 26,500 N

Size (mm): axial ~ 435; radial ~ 532 Mass (kg): 55.5

Typically deployed as a holding brake where extremely high braking force requirements exist, for example, for large-scale ventilators.

DH 010 MSM

Braking torque up to 75Nm

Brake disc diameter up to 355mm

Clamping force: 576N

Weight: 1.1kg

Thickness of brake disc: 12.5mm
A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

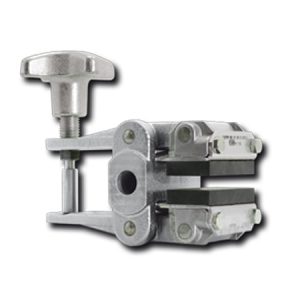

DH 020 MSM

Braking torque up to 520Nm

Brake disc diameter up to 520mm

Clamping force: 2800N

Weight: 4.8kgThickness of brake disc: 12.5mm

A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

DH 020 MKM

DH-020-MKM-Industrial-Brake-Caliper

Braking torque up to 520Nm

Brake disc diameter up to 355mm

Clamping force: 3300N

Weight: 5.1kg

Thickness of brake disc: 12.5mm

A spring loaded pressure pin compensates for wear of the friction block during the braking action.

DV 020 MSM

Braking torque up to 520Nm

Brake disc diameter up to 520mm

Clamping force: 2800N

Weight: 4.8kg

Thickness of brake disc: 12.5mm
A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

DV 020 MKM

Braking torque up to 600Nm

Brake disc diameter up to 355mm

Clamping force: 3300N

Weight: 5.1kg

Thickness of brake disc: 12.5mm

A spring loaded pressure pin compensates for wear of the friction block during the braking action.
