Features

• Bore range: up to 300mm
• Nom. Transmitting Torque: 160000Nm
• Supplied with integrated ball bearings for assembly with customer-provided connecting components
• Any component mounted to the outer race outside diameter must be machined to an H7 tolerance for accurate fit and alignment

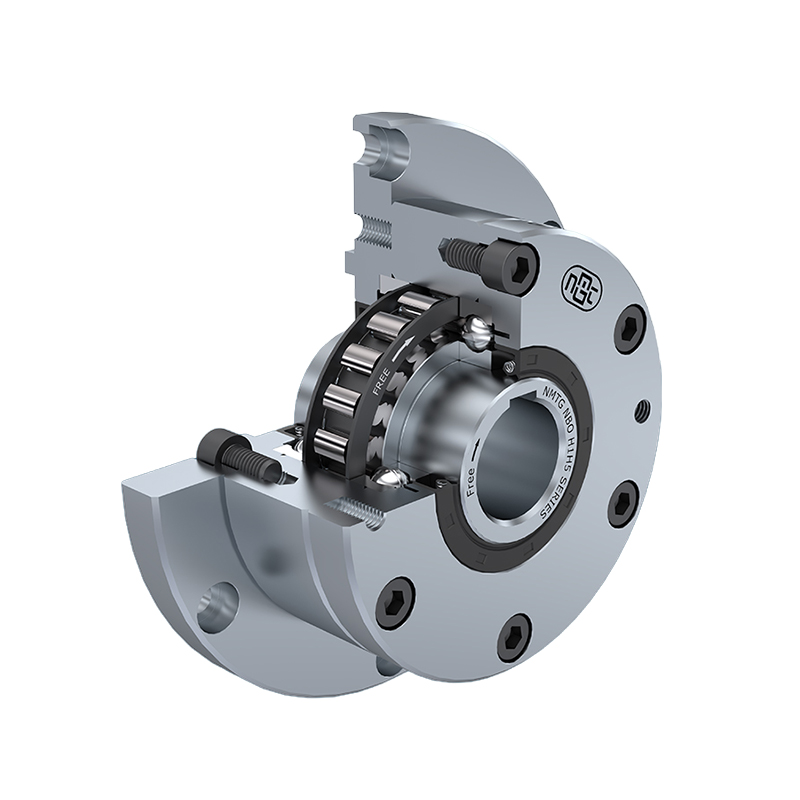

• The H1H5 configuration is used as a backstop, with the H1 cover acting as an end cover and the H5 cover providing a spigot-type flange arrangement.
• Available for operation with either oil or grease lubrication.
