The W22Xec Motor ensures non-incendive operation (Zone 2 – Ex ec IIC T3 Gc) with Protection by Enclosure (Zone 22 – Ex tc IIIB T125°C Dc). It meets IEC 60034-30-1 efficiency standards and is ideal for applications with occasional flammable risks. Trust its robust design for consistent performance in challenging conditions. Upgrade to the W22Xec Motor and experience unparalleled safety, reliability, and versatility for your operations.

Features & Benefits

• Increased Safety Design: This design helps minimize the risk of sparks, arcs, or excessive temperatures that could cause an explosion in hazardous areas. The motor may include additional safety features such as thermistors for temperature monitoring, anti-condensation heaters to prevent moisture buildup, and special coatings to protect against corrosive substances.
• Versatility in Flammable Environments: While the standard W22 Motor is suitable for general applications, the W22Xec Motor is specifically designed for installations where flammable mixtures may present occasional risks. It offers the necessary safety measures for environments with infrequent flammable exposure, providing peace of mind in critical situations.
• High-Efficiency Operation: Resulting in reduced energy consumption and lower operating costs. It meets or exceeds energy efficiency standards, contributing to sustainability and environmental conservation efforts.
• Easy Maintenance: The motor is designed with user-friendly features to facilitate maintenance and servicing.
• Unmatched Reliability: The W22Xec Motor is built with robust construction and advanced engineering, ensuring exceptional performance and durability even in challenging conditions. It is designed to minimize downtime and maximize productivity, making it a reliable choice for demanding applications.

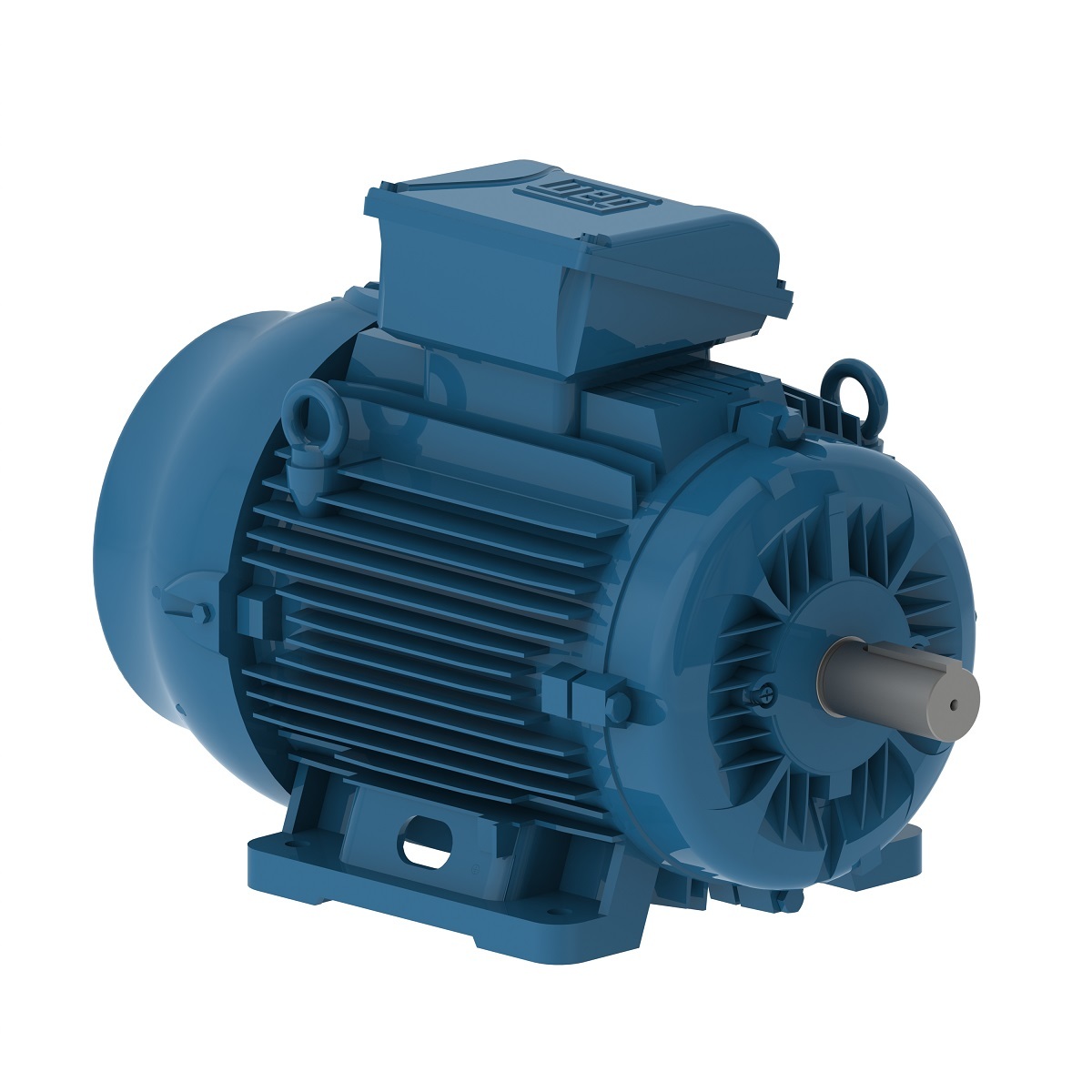

W22Xec IE1

Frequency (Hz)	50
Voltage (v)	400-690
Protection	IP56
Synchronous speed (rpm)	3000
Output rating (kW)	90
Mounting	Foot-mounted
No. of poles	2
Enclosure	IC411 – TEFC
Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 212P (ISO 12944 – C5)

50%	75%	100%
92	93.5	95

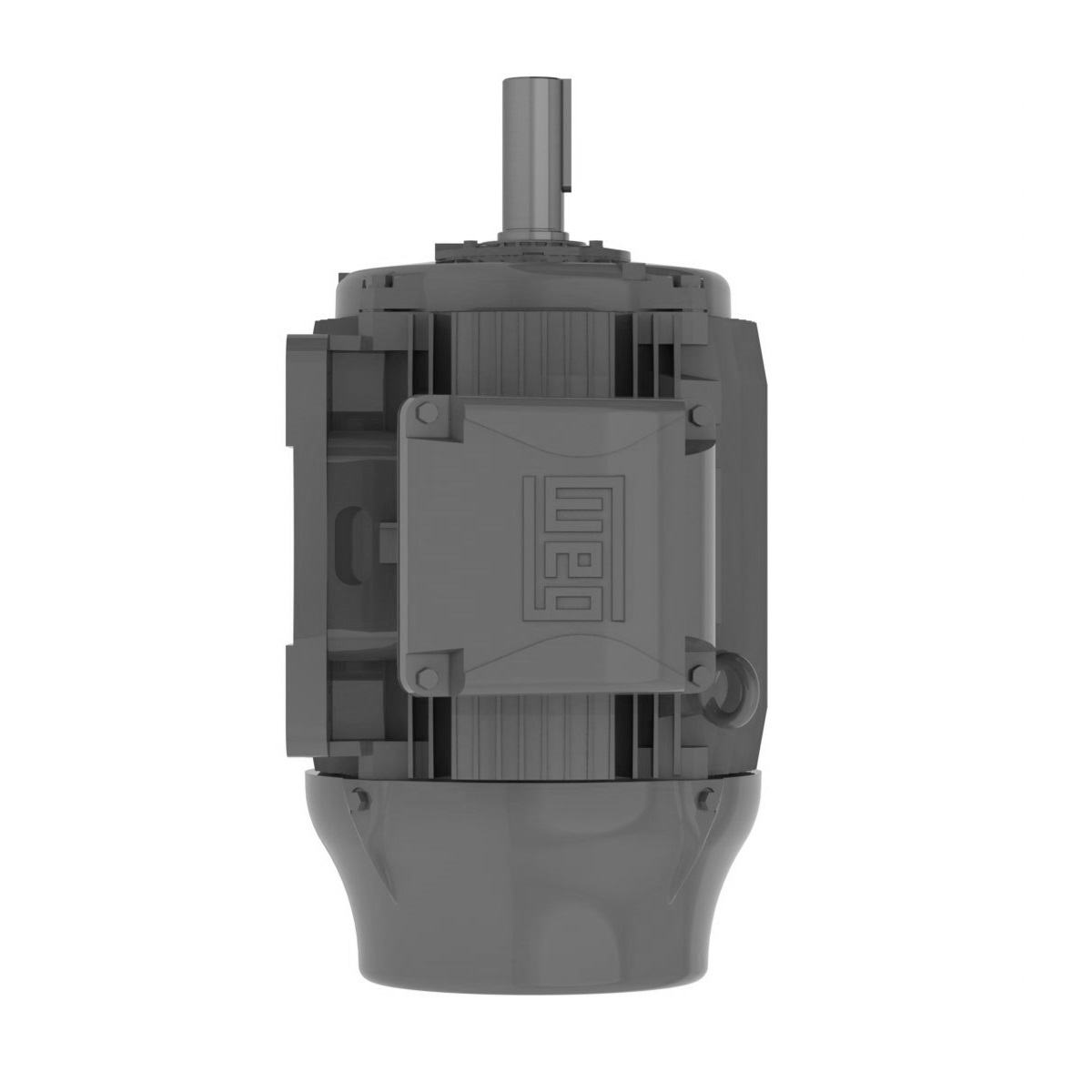

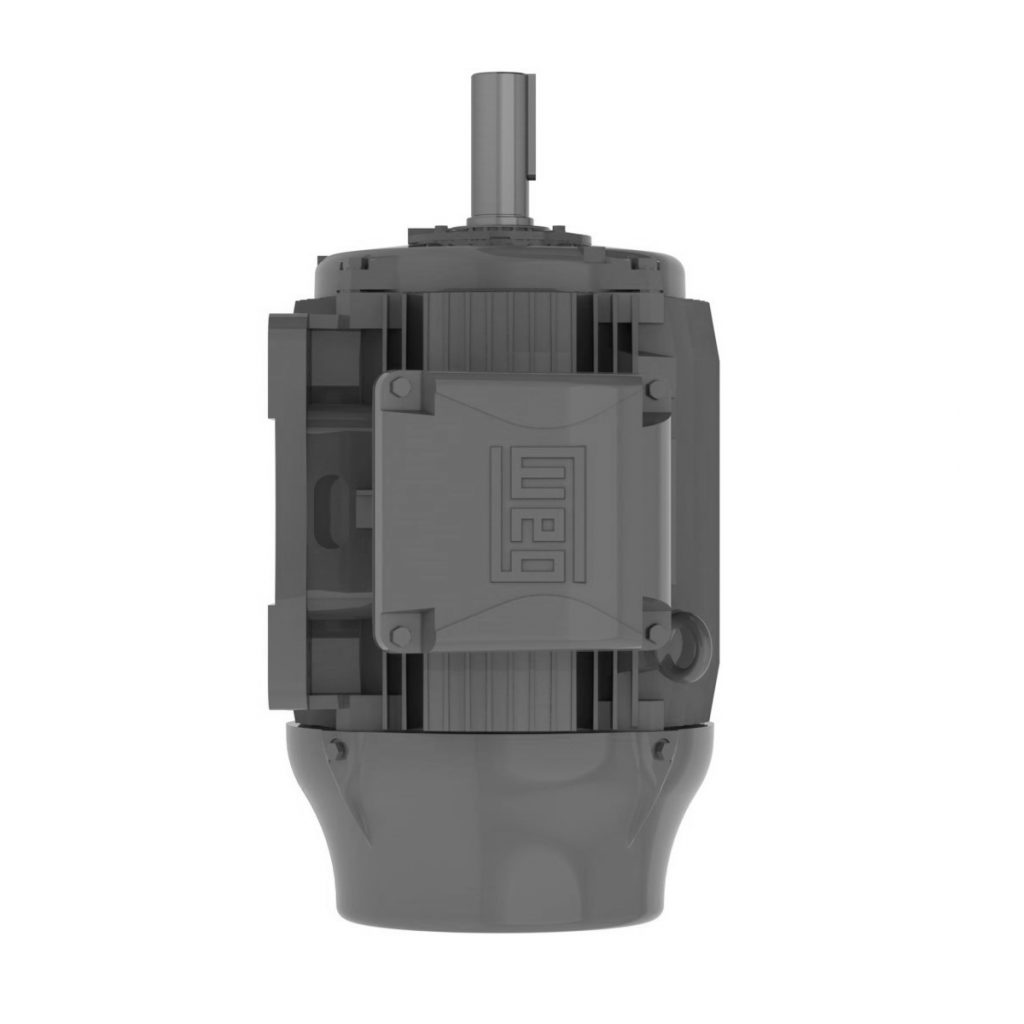

W22Xec IR3 Premium

Frequency (Hz)	60
Voltage (v)	440
Protection	IPW55
Synchronous speed (rpm)	1200
Output rating (kW)	90
Mounting	V6E
No. of poles	6
Enclosure	IC411 – TFVE
Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Shaft Material	SAE 1040/45 Carbon Steel
Painting	MUNSELL N 6.5 212P with 1023 IMP (ISO 12944 – C5)

50%	75%	100%
93	93.6	94.1
