Ringspann Industrial Brake Calipers are high-performance braking systems designed for demanding industrial applications, offering reliable stopping power, durability, and precision control for a variety of heavy-duty machinery.

Send an enquiry
DH-030-FPM-FPA-PFM-Industrial-Brake-Caliper

Manually Activated

DH 010 MSM

  • Braking torque up to 75Nm
  • Brake disc diameter up to 355mm
  • Clamping force: 576N
  • Weight: 1.1kg
  • Thickness of brake disc: 12.5mm
  • A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

DH 020 MSM

  • Braking torque up to 520Nm
  • Brake disc diameter up to 520mm
  • Clamping force: 2800N
  • Weight: 4.8kg
  • Thickness of brake disc: 12.5mm
  • A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

DH 020 MKM

DH-020-MKM-Industrial-Brake-Caliper
  • Braking torque up to 520Nm
  • Brake disc diameter up to 355mm
  • Clamping force: 3300N
  • Weight: 5.1kg
  • Thickness of brake disc: 12.5mm
  • A spring loaded pressure pin compensates for wear of the friction block during the braking action.

DV 020 MSM

  • Braking torque up to 520Nm
  • Brake disc diameter up to 520mm
  • Clamping force: 2800N
  • Weight: 4.8kg
  • Thickness of brake disc: 12.5mm
  • A spring loaded threaded spindle compensates for wear of the friction block during the braking action.

DV 020 MKM

  • Braking torque up to 600Nm
  • Brake disc diameter up to 355mm
  • Clamping force: 3300N
  • Weight: 5.1kg
  • Thickness of brake disc: 12.5mm
  • A spring loaded pressure pin compensates for wear of the friction block during the braking action.

Spring Activated

DH/DV 010/020/025/030/035 FPM/A

  • Braking torque up to 5750Nm
  • Brake disc diameter up to 800mm
  • Clamping force up to: 19500N
  • Air Pressure up to: 8 bar
  • Air volume per activation up to: max 540cm3
  • Weight up to: 14.9kg
  • Note: Information shown is representative of DH/DV 035 FPM including 800mm Brake disc with thruster 122; expect weight; which is from DH/DV 035 FPA.

DH/DV 020/030/035 FHM/A

  • Braking torque up to 4700Nm
  • Brake disc diameter up to 800mm
  • Clamping force up to: 16000N
  • Oil Pressure up to: 120 bar
  • Oil volume up to: max 6cm3
  • Weight up to: 14.1kg
  • Note: Information shown is representative of DH/DV 035 FHM including 800mm Brake disc with thruster 270; expect weight, which is from DH/DV 035 FHA.

DH/DV 020 FKM

  • Braking torque up to 510Nm
  • Brake disc diameter up to 520mm
  • Clamping force up to: 2750N
  • Weight up to: 4.4kg.

DU 060 FHM

  • Braking torque up to 38500Nm
  • Brake disc diameter up to 1600mm
  • Clamping force up to: 65000N
  • Oil Pressure up to: 125 bar
  • Oil volume up to: max 158cm3
  • Weight up to: 71kg.

Pneumatically Activated

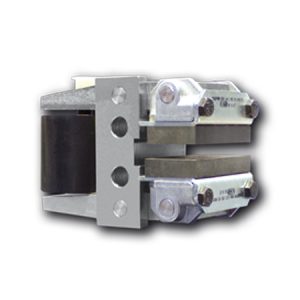

DH/DV 005/010/015/020 PFK

  • Braking torque up to 700Nm
  • Brake disc diameter up to 520mm
  • Clamping force up to: 3500N
  • Air Pressure up to: 6 bar
  • Air volume per activation up to: max 120cm3
  • Weight up to: 4.8kg
  • Note: Information shown is representative of DH 020 PFK.

DH/DV 025/030/035 PFM

  • Braking torque up to 3600Nm
  • Brake disc diameter up to 520mm
  • Clamping force up to: 13650N
  • Air Pressure up to: 7 bar
  • Air volume per activation up to: max 740cm3
  • Weight up to: 12.3kg
  • Note: Information shown is representative of DH/DV 035 PFM including 800mm Brake disc with thruster 655.

DU 060 PFM

  • Braking torque up to 38500Nm
  • Brake disc diameter up to 1600mm
  • Clamping force up to: 65000N
  • Air Pressure up to: 8.5 bar
  • Air volume per activation up to: max 400cm3
  • Weight up to: 70kg
