Frequency Converter Fe
The frequency converter Fe is designed for V/f operation under rough environment, allowing a wide range of application.
Rexroth frequency converter Fe represents the economical line of converters for the power range from 0.75 kW to 160 kW. With a broad performance spectrum and high overcurrent carrying capacity, the integrated brake chopper (<15 kW), this frequency converter from the Bosch Rexroth range has UL certification and has service availability, worldwide.

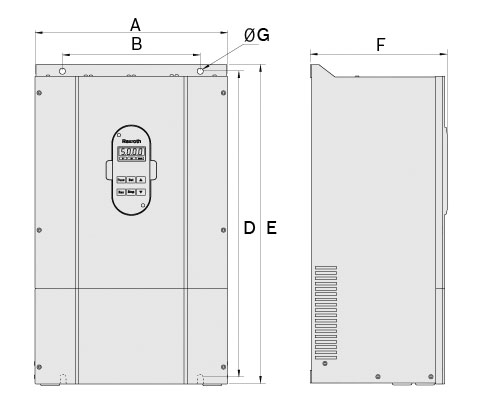

Dimensions
| Type | A | E | F |
|---|---|---|---|
| [mm] | [mm] | [mm] | |
| FECG02.1-0K75-…-SP | 125 | 220 | 176 |
| FECG02.1-1K50-…-SP | |||
| FECG02.1-2K20-…-SP | |||
| FECG02.1-4K00-…-SP | |||
| FEC(G/P)02.1-5K50-…-SP | |||
| FEC(G/P)02.1-7K50-…-SP | |||
| FEC(G/P)02.1-11K0-…-BN | 220 | 392 | 218 |
| FEC(G/P)02.1-15K0-…-BN | |||
| FEC(G/P)02.1-18K5-…-BN | 275 | 463 | |
| FEC(G/P)02.1-22K0-…-BN | |||
| FEC(G/P)02.1-30K0-…-BN | 290 | 574 | 236 |
| FEC(G/P)02.1-37K0-…-BN | |||
| FEC(G/P)02.1-45K0-…-BN | 364 | 602 | 260 |
| FEC(G/P)02.1-55K0-…-BN | |||
| FEC(G/P)02.1-75K0-…-BN | 455 | 682 | 290 |
| FEC(G/P)02.1-90K0-…-BN | |||
| FEC(G/P)02.1-110K-…-BN | 570 | 850 | 360 |
