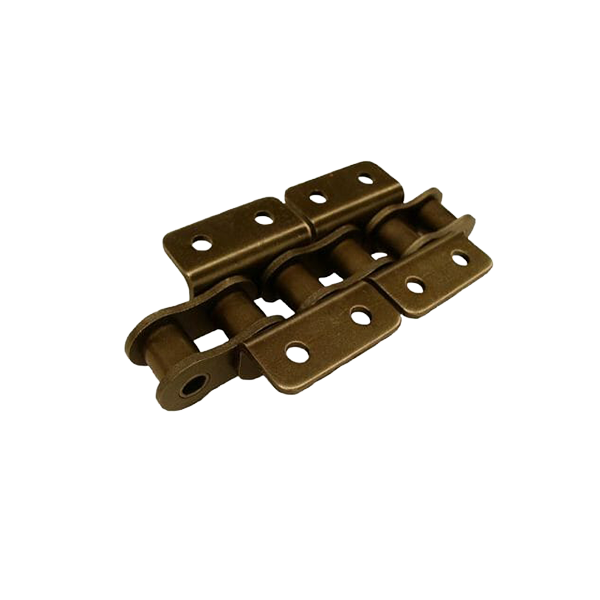

TransDrive WA & WK Roller Chain Attachments | Chain & Drives - Industrial Power Transmission Specialists

ANSI

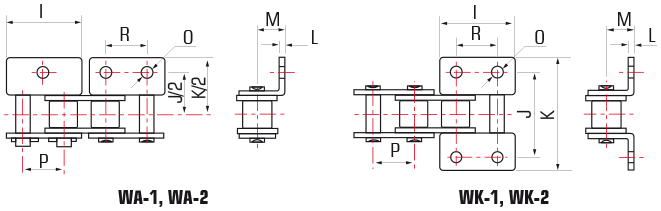

Chain No.	P	I	R	J	K	L	M	O
40	0.500	0.906	0.500	1.000	1.402	0.059	0.311	0.134
50	0.625	1.134	0.625	1.252	1.843	0.080	0.406	0.217
60	0.750	1.364	0.750	1.500	2.220	0.095	0.469	0.217
80	1.000	1.807	1.000	2.000	2.882	0.128	0.626	0.268
100	1.250	2.270	1.250	2.500	3.535	0.157	0.780	0.362

measurements in Inches

BS

Chain No.	P	I	R	J	K	L	M	O
08B	12.700	24.00	12.70	25.40	36.40	1.60	8.90	4.30
10B	15.875	29.58	15.88	31.80	44.60	1.70	10.31	5.30
12B	19.050	34.05	19.05	38.10	52.40	1.85	13.46	6.40
16B	25.400	46.40	25.40	50.80	72.60	3.10	15.88	6.40

measurements in mm
