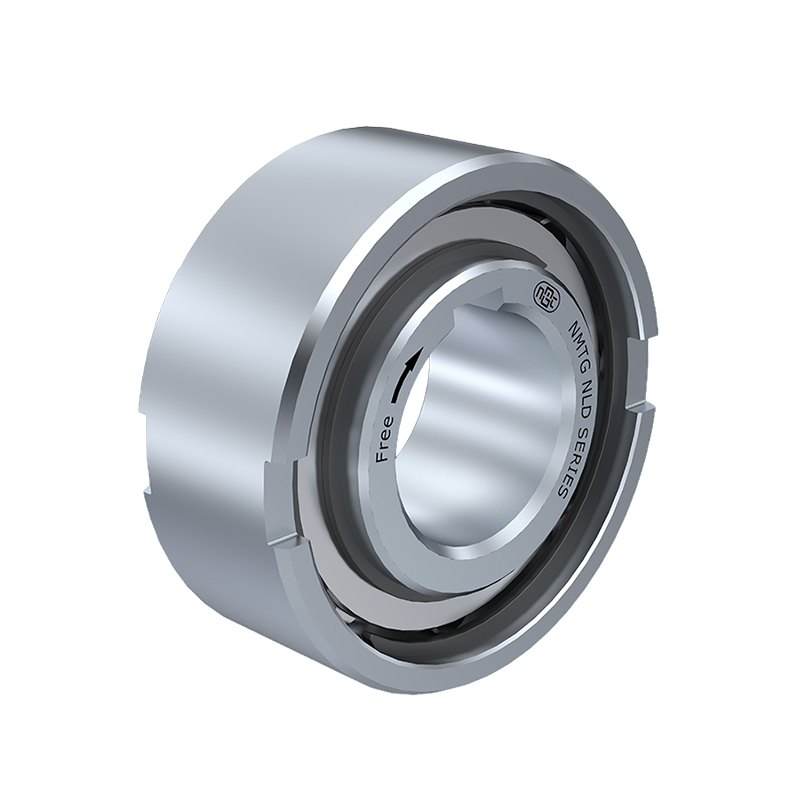

Features

• Bore range: up to 200mm
• Nom. Transmitting torque: 44500Nm
• Non-bearing supported design requiring external bearings to carry axial and radial loads
• Lubrication and sealing must be provided during installation
• Outer race features n6 tolerance for press-fit installation into H7 housing
• Additional notches in the outer race ensure positive torque transmission
• When installed in K6 tolerance housing, notches are not required
• Housing must be sufficiently rigid to prevent expansion after assembly.
