SE Series

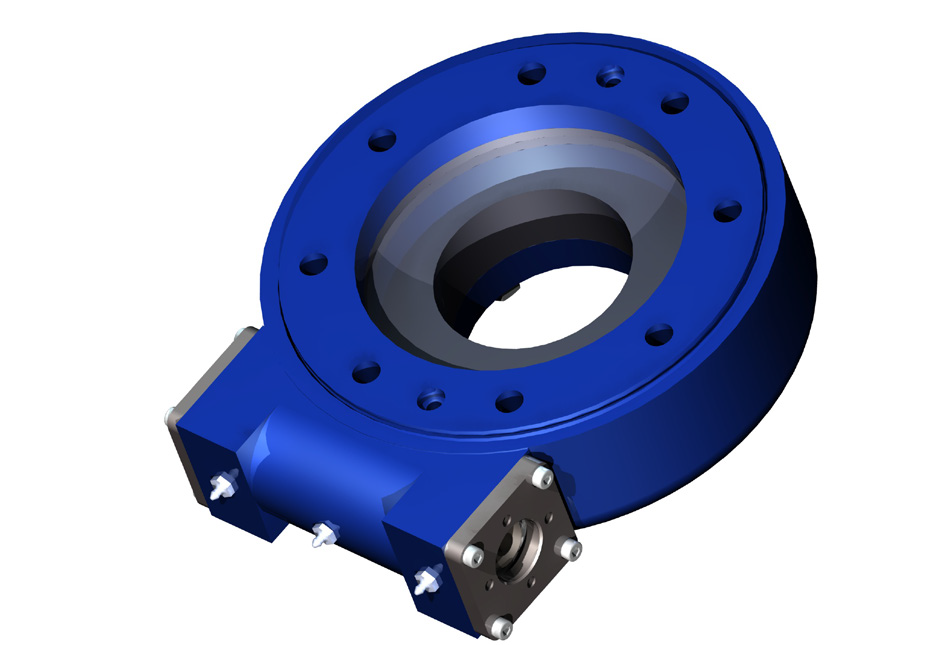

The TransDrive SE Series Slew Drives features a fully enclosed housing, integrated slewing ring, worm gear mechanism and heavy-duty support components, it delivers smooth, controlled rotation with impressive torque capability.

The SE Series can be driven by either hydraulic or electric motors, providing flexible operation with both clockwise and anti-clockwise rotation. Its enclosed construction safeguards internal components from dust, moisture and debris, promoting extended service life and reduced maintenance requirements.

Designed for ease of installation and servicing, the TransDrive SE Series is well suited to applications requiring accurate positioning and reliable load handling. Common uses include solar tracking systems, wind energy equipment, construction machinery, industrial automation and manufacturing systems – where strength, precision and long-term durability are critical.

Engineered for challenging conditions, the SE Series from TransDrive ensures a consistent, reliable performance in demanding environments.

Range

SE3C/ PE3C/ ZE3C
SE5A/ PE5A/ ZE5A
SE5C/ PE5C
SE7/ PE7/ ZE7
SE7A/ PE7A

SE9A/ PE9A/ ZE9A
SE12A/ PE12A/ ZE12A
SE14A/ PE14A/ ZE14A
SE14-2/ S14-2
SE17A/ PE17A

SE17-2/ S17-2
SE21/ PE21
SE25/ PE25
SE25-2/ S25-2

Product Specifications

Model	Output Torque	Tilting Moment Torque	Holding Torque	Static Axial Rating	Static Radial Rating	Dynamic Axial Rating	Dynamic Radial Rating	Gear Ratio	Tracking Precision	Weight
SE3C	400Nm	500Nm	2000Nm	30kN	15kN	9.6kN	8.4kN	62:1	≤0.2°	32kg
SE3C	295lbf.ft	369lbf.ft	1475lbf.ft	6477lbf	3372lbf	2158lbf	1888lbf	62:1	≤0.2°	32kg
PE3C	400Nm	500Nm	2000Nm	30kN	15kN	9.6kN	8.4kN	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	32kg
PE3C	295lbf.ft	369lbf.ft	1475lbf.ft	6477lbf	3372lbf	2158lbf	1888lbf	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	32kg
ZE3C	400Nm	500Nm	2000Nm	30kN	15kN	9.6kN	8.4kN	62:1	0o	32kg
ZE3C	295lbf.ft	369lbf.ft	1475lbf.ft	6477lbf	3372lbf	2158lbf	1888lbf	62:1	0o	32kg
SE5A	600Nm	3000Nm	5500Nm	45kN	22kN	14.4kN	11.1kN	62:1	≤0.2°	20kg
SE5A	442.5lbf.ft	2212.5lbf.ft	4056.25	10116lbf	4945.6lbf	3237.1lbf	2495.³lbf	62:1	≤0.2°	20kg
PE5A	600Nm	3000Nm	5500Nm	45kN	22kN	14.4kN	11.1kN	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	20kg
PE5A	442.5lbf.ft	2212.5lbf.ft	4056.25lbf.ft	10116lbf	4945.6lbf	3237.1lbf	2495.³lbf	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	20kg
ZE5A	360Nm	3000Nm	5500Nm	45kN	22kN	14.4kN	11.1kN	62:1	0o	20kg
ZE5A	265.5lbf.ft	2212.5lbf.ft	4056.25lbf.ft	10116lbf	4945.6lbf	3237.1lbf	2495.³lbf	62:1	0o	20kg
SE5C	600Nm	3000Nm	5500Nm	45kN	22kN	14.4kN	11.1kN	62:1	≤0.2°	20kg
SE5C	442.5lbf.ft	2212.5lbf.ft	4056.25lbf.ft	10116lbf	4945.6lbf	3237.1lbf	2495.³lbf	62:1	≤0.2°	20kg
PE5C	600Nm	3000Nm	5500Nm	45kN	22kN	14.4kN	11.1kN	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	20kg
PE5C	442.5lbf.ft	2212.5lbf.ft	4056.25lbf.ft	10116lbf	4945.6lbf	3237.1lbf	2495.³lbf	62:1	I: ≤0.08° II: ≤0.12° III: ≤0.15°	20kg
SE7	1500Nm	13500Nm	10400Nm	133kN	53kN	32kN	28kN	73:1	≤0.2°	21kg
SE7	1107lbf.ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf	73:1	≤0.2°	21kg
PE7	1500Nm	13500Nm	10400Nm	133kN	53kN	32kN	28kN	73:1	I: ≤0.05° II: ≤0.07° III: ≤0.11°	21kg
PE7	1107lbf.ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf	73:1	I: ≤0.05° II: ≤0.07° III: ≤0.11°	21kg
ZE7	600Nm	13500Nm	10400Nm	133kN	53kN	32kN	28kN	73:1	0o	20kg
ZE7	44³lbf.ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf	73:1	0o	20kg
SE7A	1500Nm	13500Nm	10400Nm	133kN	53kN	32kN	28kN	73:1	≤0.2°	25kg
SE7A	1107lbf.ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf	73:1	≤0.2°	25kg
PE7A	1500Nm	13500Nm	10400Nm	133kN	53kN	32kN	28kN	73:1	I: ≤0.05° II: ≤0.07° III: ≤0.11°	25kg
PE7A	1107lbf.ft	9957lbf.ft	7671lbf.ft	29900lbf	11915lbf	7194lbf	6295lbf	73:1	I: ≤0.05° II: ≤0.07° III: ≤0.11°	25kg
SE9A	6.5kNm	33.9kNm	38.7kNm	338kN	135kN	81kN	71kN	61:1	≤0.17°	49kg
SE9A	4794lbf.ft	25 x 10³lbf.ft	29 x 10³lbf.ft	76 x 10³lbf.ft	30 x 10³lbf.ft	18 x 10³lbf.ft	16 x 10³lbf.ft	61:1	≤0.17°	49kg
PE9A	6.5kNm	33.9kNm	38.7kNm	338kN	135kN	81kN	71kN	61:1	I: ≤0.05° II: ≤0.07° III: ≤0.09°	49kg
PE9A	4794lbf.ft	25 x 10³lbf.ft	29 x 10³lbf.ft	76 x 10³lbf	30 x 10³lbf	18 x 10³lbf	16 x 10³lbf	61:1	I: ≤0.05° II: ≤0.07° III: ≤0.09°	49kg
ZE9A	3.9kNm	33.9kNm	38.7kNm	338kN	135kN	81kN	71kN	61:1	0o	49kg
ZE9A	2876lbf.ft	25 x 10³lbf.ft	29 x 10³lbf.ft	76 x 10³lbf	30 x 10³lbf	18 x 10³lbf	16 x 10³lbf	61:1	0o	49kg
SE12A	7.5kNm	54.3kNm	43kNm	475kN	190kN	114kN	100kN	78:1	≤0.17°	49kg
SE12A	5532lbf.ft	40 x 10³lbf.ft	32 x 10³lbf.ft	107 x 10³lbf	43 x 10³lbf	26 x 10³lbf	23 x 10³lbf	78:1	≤0.17°	49kg
PE12A	7.5kNm	54.3kNm	43kNm	475kN	190kN	114kN	100kN	78:1	I: ≤0.05° II: ≤0.07° III: ≤0.09°	61kg
PE12A	5532lbf.ft	40 x 10³lbf.ft	32 x 10³lbf.ft	107 x 10³lbf	43 x 10³lbf	26 x 10³lbf	23 x 10³lbf	78:1	I: ≤0.05° II: ≤0.07° III: ≤0.09°	61kg
ZE12A	4.5kNm	54.3kNm	43kNm	475kNm	190kN	114kN	100kN	78:1	0o	61kg
ZE12A	3319lbf.ft	40 x 10³lbf.ft	32 x 10³lbf.ft	107 x 10³lbf	43 x 10³lbf	26 x 10³lbf	23 x 10³lbf	78:1	0o	61kg
SE14A	8kNm	67.8kNm	48kNm	555kN	222kN	133kN	117kN	85:1	≤0.17°	64kg
SE14A	5900lbf.ft	50 x 10³lbf.ft	35 x 10³lbf.ft	125 x 10³lbf	50 x 10³lbf	30 x 10³lbf	26 x 10³lbf	85:1	≤0.17°	64kg
PE14A	8kNm	67.8kNm	48kNm	555kN	222kN	133kN	117kN	85:1	I: ≤0.03° II: ≤0.05° III: ≤0.07° IV: ≤0.09°	64kg
PE14A	5900lbf.ft	50 x 10³lbf.ft	35 x 10³lbf.ft	125 x 10³lbf	50 x 10³lbf	30 x 10³lbf	26 x 10³lbf	85:1	I: ≤0.03° II: ≤0.05° III: ≤0.07° IV: ≤0.09°	64kg
ZE14A	4.8kNm	67.8kNm	48kNm	555kN	222kN	133kN	117kN	85:1	0o	64kg
ZE14A	3500lbf.ft	50 x 10³lbf.ft	35 x 10³lbf.ft	125 x 10³lbf	50 x 10³lbf	30 x 10³lbf	26 x 10³lbf	85:1	0o	64kg
SE14-2	12kNm	67.8kNm	48kNm	555kNm	222kN	133kN	117kN	85:1	≤0.17°	76kg
SE14-2	8851lbf.ft	50 x 10³lbf.ft	35 x 10³lbf.ft	125 x 10³lbf	50 x 10³lbf	30 x 10³lbf	26 x 10³lbf	85:1	≤0.17°	76kg
S14-2	8kNm	68.7kNm	48kNm	555kN	222kN	133kN	117kN	85:1	≤0.17°	76kg
S14-2	5900lbf.ft	50 x 10³lbf.ft	35 x 10³lbf.ft	125 x 10³lbf	50 x 10³lbf	30 x 10³lbf	26 x 10³lbf	85:1	≤0.17°	76kg
SE17A	10kNm	135.6kNm	72.3kNm	970kN	390kN	235kN	205kN	102:1	≤0.15°	105kg
SE17A	7400lbf.ft	100 x 10³lbf.ft	53 x 10³lbf.ft	218 x 10³lbf	88 x 10³lbf	53 x 10³lbf	46 x 10³lbf	102:1	≤0.15°	105kg
PE17A	10kNm	135.6kNm	72.3kNm	970kN	390kN	235kN	205kN	102:1	≤0.15°	105kg
PE17A	7400lbf.ft	100 x 10³lbf.ft	53 x 10³lbf.ft	218 x 10³lbf	88 x 10³lbf	53 x 10³lbf	46 x 10³lbf	102:1	≤0.15°	105kg
SE17-2	16.8kNm	135.6kNm	72.3kNm	970kN	390kN	235kN	205kN	102:1	≤0.15°	119kg
SE17-2	12391lbf.ft	100 x 10³lbf.ft	53 x 10³lbf.ft	218 x 10³lbf	88 x 10³lbf	53 x 10³lbf	46 x 10³lbf	102:1	≤0.15°	119kg
S17-2	10kNm	135.6kNm	72.3kNm	970kN	390kN	235kN	205kN	102:1	≤0.15°	102kg
S17-2	7400lbf.ft	100 x 10³lbf.ft	53 x 10³lbf.ft	218 x 10³lbf	88 x 10³lbf	53 x 10³lbf	46 x 10³lbf	102:1	≤0.15°	102kg
SE21	15kNm	203kNm	105.8kNm	1598kN	640kN	385kN	335kN	125:1	≤0.15°	149kg
SE21	11000lbf.ft	150 x 10³lbf.ft	78 x 10³lbf.ft	359 x 10³lbf	144 x 10³lbf	87 x 10³lbf	75 x 10³lbf	125:1	≤0.15°	149kg
PE21	15kNm	203kNm	105.8kNm	1598kN	640kN	385kN	335kN	125:1	≤0.15°	149kg
PE21	11000lbf.ft	150 x 10³lbf.ft	78 x 10³lbf.ft	359 x 10³lbf	144 x 10³lbf	87 x 10³lbf	75 x 10³lbf	125:1	≤0.15°	149kg
SE21-2	20.6kNm	203kNm	105.8kNm	1598kNm	640kN	385kN	335kN	125:1	≤0.15°	149kg
SE21-2	15194lbf.ft	150 x 10³lbf.ft	78 x 10³lbf.ft	359 x 10³lbf	144 x 10³lbf	87 x 10³lbf	75 x 10³lbf	125:1	≤0.15°	149kg
S21-2	20.6kNm	203kNm	1058kNm	1598kNm	640kN	385kN	335kN	125:1	≤0.15°	149kg
S21-2	15194lbf.ft	150 x 10³lbf.ft	78 x 10³lbf.ft	359 x 10³lbf	144 x 10³lbf	87 x 10³lbf	75 x 10³lbf	125:1	≤0.15°	149kg
SE25	18kNm	271kNm	158.3kNm	2360kN	945kN	590kN	470kN	150:1	≤0.15°	204kg
SE25	13300lbf.ft	200 x 10³lbf.ft	117 x 10³lbf.ft	531 x 10³lbf	212 x 10³lbf	133 x 10³lbf	106 x 10³lbf	150:1	≤0.15°	204kg
PE25	18kNm	271kNm	158.3kNm	2360kN	945kN	590kN	470kN	150:1	I: ≤0.03° II: ≤0.05° III: ≤0.07° IV: ≤0.09°	204kg
PE25	13300lbf.ft	200 x 10³lbf.ft	117 x 10³lbf.ft	531 x 10³lbf	212 x 10³lbf	133 x 10³lbf	106 x 10³lbf	150:1	I: ≤0.03° II: ≤0.05° III: ≤0.07° IV: ≤0.09°	204kg
SE25-2	28kNm	271kNm	158.3kNm	2360kN	945kN	590kN	470kN	150:1	≤0.15°	222kg
SE25-2	20652lbf.ft	200 x 10³lbf.ft	117 x 10³lbf.ft	531 x 10³lbf	212 x 10³lbf	133 x 10³lbf	106 x 10³lbf	150:1	≤0.15°	222kg
S25-2	28kNm	271kNm	158.3kNm	2360kN	945kN	590kN	470kN	150:1	≤0.15°	204kg
S25-2	20652lbf.ft	200 x 10³lbf.ft	117 x 10³lbf.ft	531 x 10³lbf	212 x 10³lbf	133 x 10³lbf	106 x 10³lbf	150:1	≤0.15°	204kg

TransDrive Slew Drives SE Series size chart
