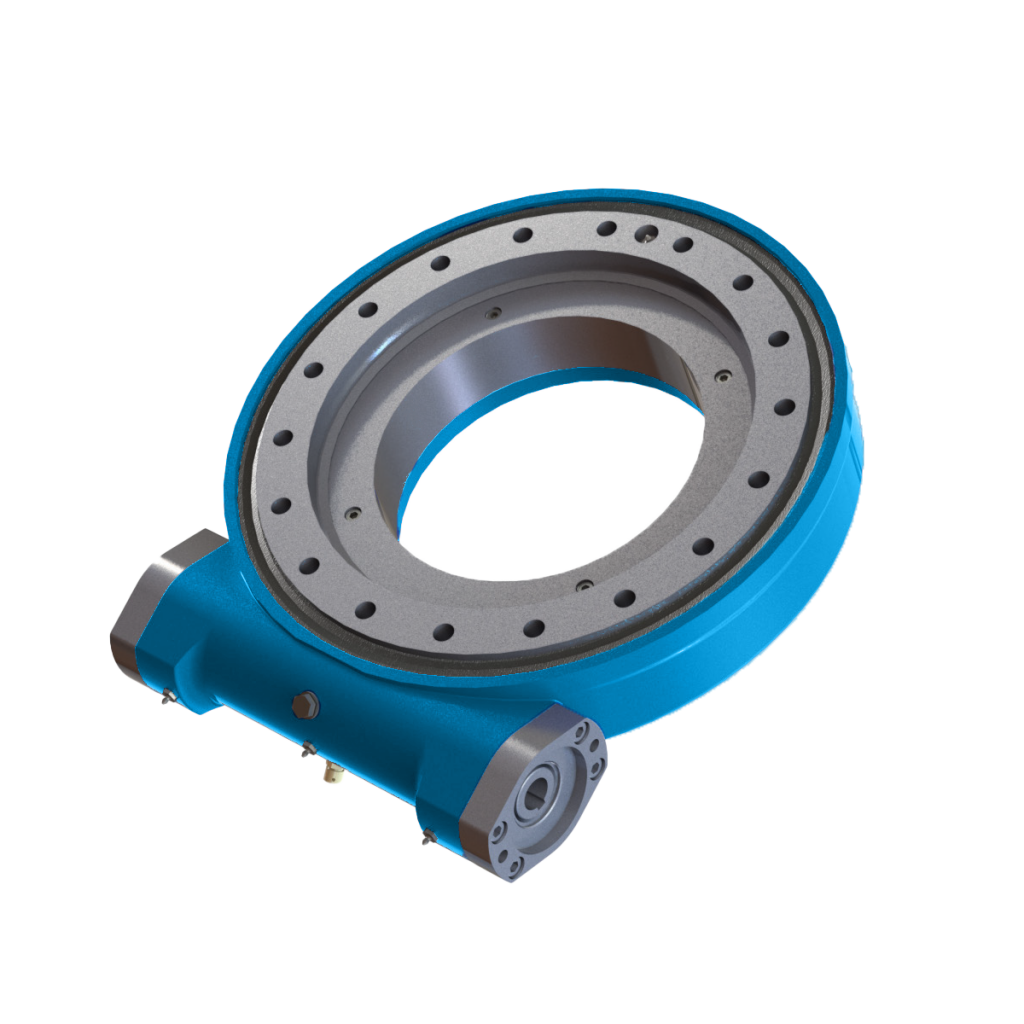

TransDrive Slew Drives HSE Series
The TransDrive HSE (High Speed Enclosed) Series Slew Drive is purpose-built with fully enclosed gearing to maximise performance and operating efficiency.
Engineered for durability, the HSE Series robust design offers outstanding protection against dust, moisture and debris, helping to extend the service life of the drive system. By limiting exposure to harsh environmental conditions, the HSE Series reduces wear and ongoing maintenance requirements, supporting dependable long-term performance. Its refined engineering ensures smooth, efficient operation, making it ideal for demanding applications. Built for strength and precision, the TransDrive Slew Drive HSE Series performs reliably in tough environments where durability and consistent operation are essential.
Range
- HSE21
- HSE21-2
- HSE25
- HSE25-2
Product Specifications
| Model | Output Torque | Max Output Torque | Tilting Moment Torque | Static Axial Rating | Static Radial Rating | Dynamic Axial Rating | Dynamic Radial Rating | Gear Ratio | Tracking Precision | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| HSE21 | 21.8kNm | 26.6kNm | 167kNm | 1058kN | 421kN | 265kN | 216kN | 82:1 | ≤0.15° | 186kg |
| 16078lbf.ft | 19618lbf.ft | 125 x 10³lbf.ft | 238 x 10³lbf | 95 x 10³lbf | 60 x 10³lbf | 49 x 10³lbf | ||||
| HSE21-2 | 43.6kNm | 52.3kNm | 167kNm | 1058kNm | 421kNm | 265kNm | 216kNm | 82:1 | ≤0.15° | 206kg |
| 32264lbf.ft | 38702lbf.ft | 125 x 10³lbf.ft | 238 x 10³lbf | 95 x 10³lbf | 60 x 10³lbf | 49 x 10³lbf | ||||
| HSE25 | 25kNm | 30kNm | 271kNm | 1360kNm | 945kNm | 590kNm | 470kNm | 94:1 | ≤0.15° | 255kg |
| 18439lbf.ft | 22140lbf.ft | 200 X 10³lbf.ft | 531 X 10³lbf | 212 X 10³lbf | 133 X 10³lbf | 106 10³lbf | ||||
| HSE25-2 | 50kNm | 60kNm | 271kNm | 1360kNm | 945kNm | 590kNm | 470kNm | 94:1 | ≤0.15° | 275kg |
| 36878lbf.ft | 44280lbf.ft | 200 x 10³lbf.ft | 531 x 10³lbf | 212 x 10³lbf | 133 x 10³lbf | 106 x 10³lbf |
