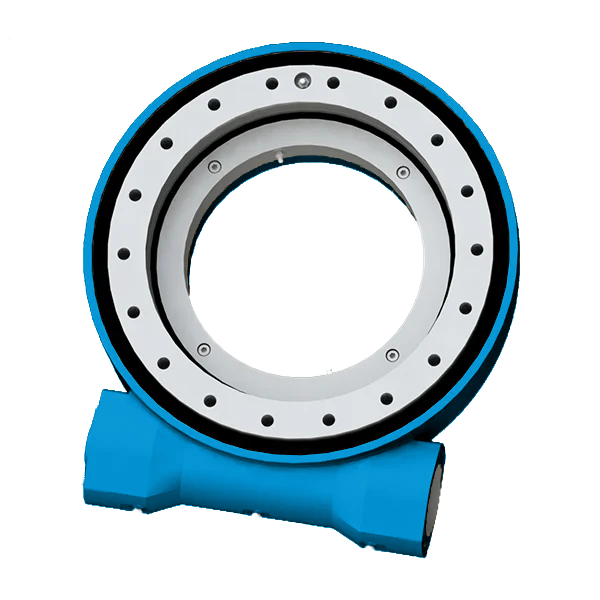

TransDrive Slew Drives FWA Series
The TransDrive FWA Series slewing drives are robust, fully sealed rotary actuators engineered for high-performance applications requiring precision, reliability and durability.
Designed for harsh outdoor and industrial environments, TransDrives FWA Series delivers exceptional strength, superior sealing protection, and dependable long-term performance. Engineered with advanced design features, it provides a clear performance advantage over conventional slewing drives, ensuring smooth, consistent operation even in the most demanding conditions.
Range
- FWA7
- FWA9
- FWA12
- FWA14 / FWA14-2
- FWA17 / FWA 17-2
- FWA19
- FWA21 / FWA21-2
- FWA25 / FWA25-2
Product Specifications
| Model | Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Ratio | Backlash | Weight |
|---|---|---|---|---|---|---|---|---|
| FWA7 | 3.5kNm | 14.7kNm | 20.6kNm | 227kNm | 92.7kN | 47:1 | ≤0.15° | 35kg |
| 2583lbf.ft | 10.8 x 10³lbf.ft | 15.2 x 10³lbf | 51 x 10³lbf | 20.8 x 10³lbf | ||||
| FWA9 | 8kNm | 35.6kNm | 39.8kNm | 550kN | 220kN | 62:1 | ≤0.15° | 52kg |
| 5904lbf.ft | 26.3 x 10³lbf.ft | 29.37 x 10³lbf | 130.3 x 10³lbf | 49.4 x 10³lbf | ||||
| FWA12 | 9.5kNm | 57kNm | 44.3kNm | 760kN | 280kN | 79:1 | ≤0.15° | 67kg |
| 7011lbf.ft | 41.2 x 10³lbf.ft | 32.7 x 10³lbf | 171.1 x 10³lbf | 62.9 x 10³lbf | ||||
| FWA14 | 10.8kNm | 71.2kNm | 49.5kNm | 960kN | 360kN | 86:1 | ≤0.15° | 75kg |
| 7970lbf.ft | 52.5 x 10³lbf.ft | 36.5 x 10³lbf | 215.8 x 10³lbf | 80.9 x 10³lbf | ||||
| FWA14-2 | 16.2kNm | 71.2kNm | 74kNm | 956kN | 363kN | 86:1 | ≤0.17° | 90kg |
| 11956lbf.ft | 62.6 x 10³lbf.ft | 54.6 x 10³lbf | 216.9 x 10³lbf | 81.6 x 10³lbf | ||||
| FWA17 | 12.96kNm | 142.4kNm | 74kNm | 1166kN | 435kN | 104:1 | ≤0.1° | 97kg |
| 9564lbf.ft | 105 x 10³lbf.ft | 54.6 x 10³lbf | 262 x 10³lbf | 97.8 x 10³lbf | ||||
| FWA17-2 | 19.44kNm | 142.4kNm | 110kNm | 1166kN | 435kN | 104:1 | ≤0.15° | 115kg |
| 14347lbf.ft | 105 x 10³lbf.ft | 81.2 x 10³lbf | 262 x 10³lbf | 97.8 x 10³lbf | ||||
| FWA19 | 18.5kNm | 196kNm | 82kNm | 1810kN | 675kN | 94:1 | ≤0.1° | 120kg |
| 13640lbf.ft | 144.5 x 10³lbf.ft | 60.5 x 10³lbf | 406 x 10³lbf | 151.7 x 10³lbf | ||||
| FWA21 | 28.7kNm | 203kNm | 107kNm | 1600kN | 650kN | 90:1 | ≤0.1° | 170kg |
| 21180lbf.ft | 150 x 10³lbf.ft | 78.9 x 10³lbf | 359.7 x 10³lbf | 146 x 10³lbf | ||||
| FWA21-2 | 48kNm | 203kNm | 181kNm | 1600kN | 650kN | 90:1 | ≤0.13° | 200kg |
| 35400lbf.ft | 150 x 10³lbf.ft | 141 x 10³lbf | 359.7 x 10³lbf | 146 x 10³lbf | ||||
| FWA25 | 34.2kNm | 310kNm | 160kNm | 2400kN | 950kN | 104:1 | ≤0.1° | 200kg |
| 25240lbf.ft | 229 x 10³lbf.ft | 118 x 10³lbf | 539.5 x 10³lbf | 213.6 x 10³lbf | ||||
| FWA25-2 | 58kNm | 310kNm | 275kNm | 2400kN | 950kN | 108:1 | ≤0.13° | 270kg |
| 42800lbf.ft | 229 x 10³lbf.ft | 203 x 10³lbf | 539.5 x 10³lbf | 213.6 x 10³lbf |
