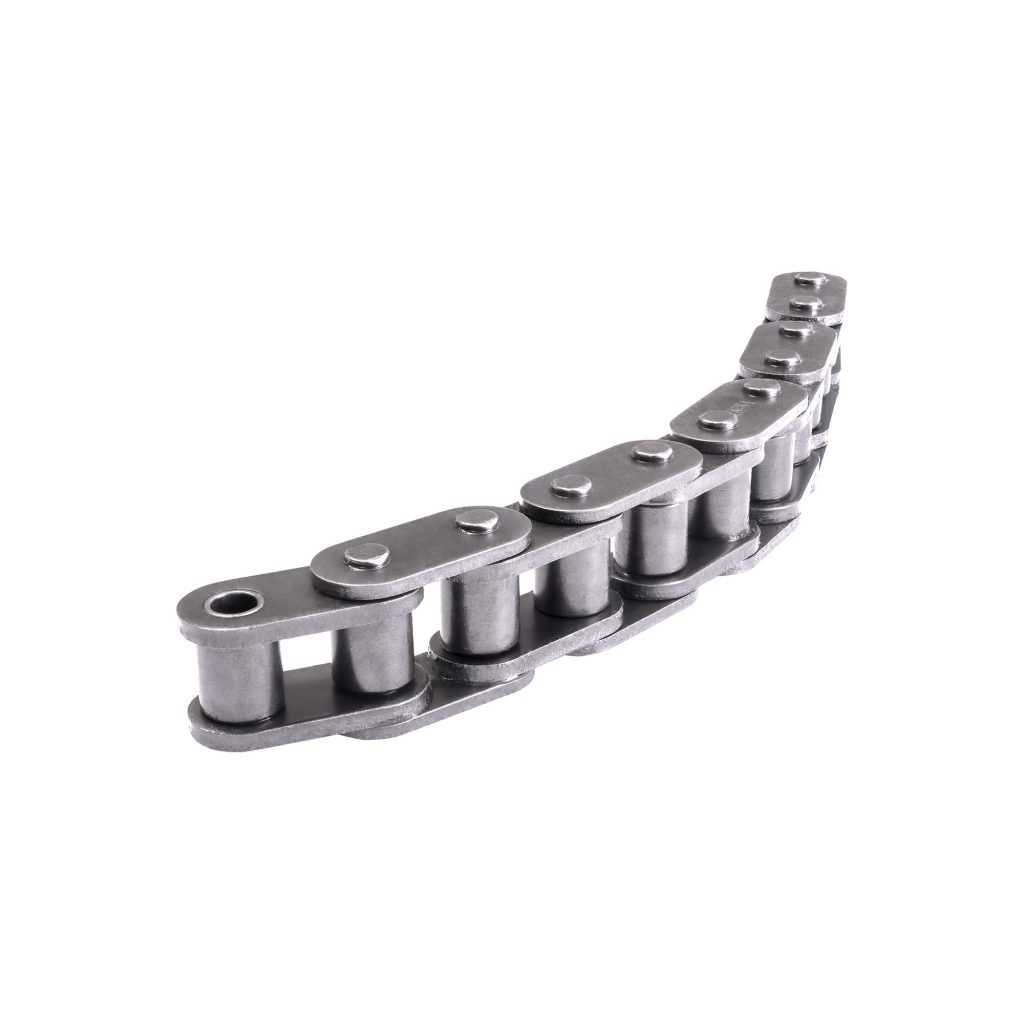

TransDrive+ SBR Zintek® Straight Side Plate Roller Chain
TransDrive+ Straight Side Plate Roller Chain delivers superior strength and corrosion resistance with Zintek® 200 XT protection.
Designed for heavy-duty use, TransDrive+ Straight Side Plate Roller Chain offers a 30% higher load capacity and extended service life in demanding environments ensuring a reliable performance. Engineered with Zintek® 200 XT Corrosion Protection, it stands up in harsh conditions and delivers consistent, top-tier performance across a wide range of industrial applications.
Features
- Zintek® 200 XT Corrosion Protection
- 30% Increase in Load Ratings
- Durable Straight Side Plate
- SBR (Solid Bush & Roller)

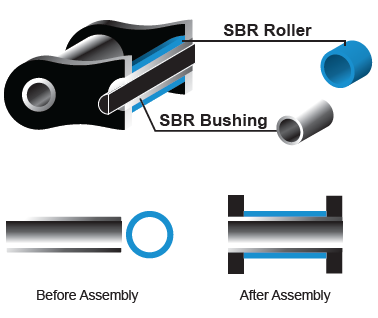

SBR (Solid Bush & Roller)
Solid bushings with tapered ends assure straight ID after assembly resulting in ultra straight bearing surfaces.

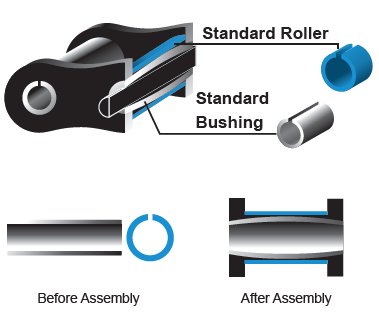

Conventional Chain
Bushing ID becomes barrel shaped as a result of press fit and makes uneven contact between pin and bushing.

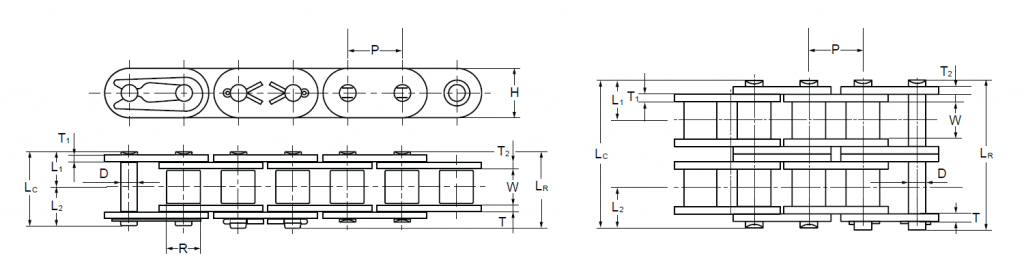

Product Specifications
| ANSI Chain No. | Dimensions (mm) | Minimum Ultimate Strength | Maximum Allowable Load | Average Chain Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch P | Roller | Pin | Plate | ||||||||||
| Width W | Dia. R | Dia. D | Length | Height | Thickness | ||||||||
| Lr | Lc | L1 | L2 | H | T | kN | kN | kg/m | |||||
| 40-1P | 12.70 | 7.95 | 7.92 | 3.96 | 16.50 | 17.90 | 8.30 | 9.60 | 11.60 | 1.50 | 24.96 | 4.84 | 0.60 |
| 50-1P | 15.875 | 9.53 | 10.16 | 5.08 | 20.40 | 22.00 | 10.20 | 11.80 | 14.50 | 2.00 | 41.47 | 8.02 | 0.98 |
| 60-1P | 19.05 | 12.70 | 11.91 | 5.95 | 25.50 | 26.90 | 12.80 | 14.10 | 17.40 | 2.40 | 56.03 | 11.21 | 1.46 |
| 60-1HP | 2.40 | 71.37 | 13.91 | 1.80 | |||||||||
| 80-1P | 25.40 | 15.88 | 15.88 | 7.93 | 32.80 | 35.10 | 16.40 | 18.70 | 23.40 | 3.20 | 102.05 | 19.11 | 2.52 |
| 80-1HP | 3.20 | 117.26 | 23.92 | 5.04 | |||||||||
| BS Chain No. | Dimensions (mm) | Minimum Ultimate Strength | Maximum Allowable Load | Average Chain Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pitch P | Roller | Pin | Plate | |||||||||||
| Width W | Dia. R | Dia. D | Length | Height | Thickness | |||||||||
| Lr | Lc | L1 | L2 | H | T1 | T2 | kN | kN | kg/m | |||||
| 08B-1P | 12.70 | 7.75 | 8.51 | 4.45 | 16.7 | 18.0 | 8.4 | 9.6 | 11.8 | 1.5 | 23.14 | 4.08 | 0.61 | |
| 10B-1P | 15.875 | 9.65 | 10.16 | 5.08 | 19.0 | 20.7 | 9.5 | 11.2 | 14.7 | 1.65 | 29 | 3.64 | 0.89 | |
| 10B-2P | 9.65 | 35.6 | 37.3 | 57.85 | 10.83 | 1.79 | ||||||||
| 12B-1P | 19.05 | 11.68 | 12.07 | 5.72 | 22.0 | 23.6 | 11.0 | 12.6 | 16.1 | 1.8 | 37.570 | 9.18 | 1.14 | |
| 12B-2P | 11.68 | 41.6 | 43.1 | 75.14 | 15.6 | 2.28 | ||||||||
| 16B-1P | 25.40 | 17.02 | 15.88 | 8.26 | 35.1 | 38.2 | 17.6 | 20.6 | 21.0 | 3.2 | 4.0 | 79.04 | 16.38 | 2.59 |
| 16B-2P | 17.02 | 67.2 | 70.1 | 137.8 | 27.82 | 5.18 | ||||||||
