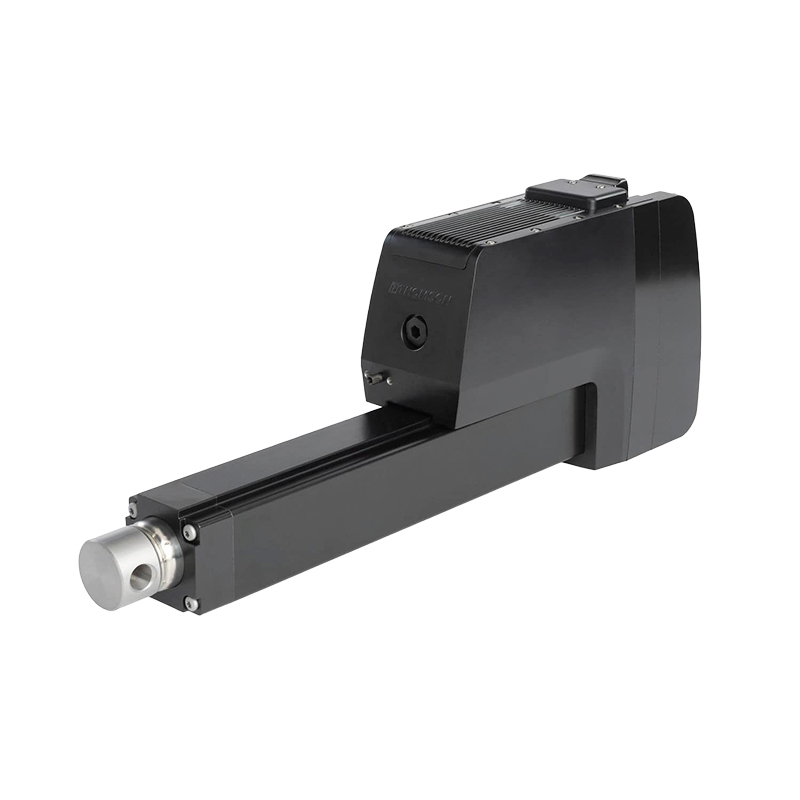

Thomson Electrak XD Linear Actuator
Precision electric linear actuation for heavy-duty motion control
Features
- Broad dynamic and static load capacities up to 25 000 N and 32 000 N respectively.
- Available stroke lengths up to 1 200 mm to suit diverse motion requirements.
- Maximum speed up to 75 mm/s for efficient linear actuation.
- High duty cycle performance and long service life of up to 275 000 cycles.
- Built-in load-holding brake for safety and positional stability.
- Optional shock load dampening for impact protection.
- Manual override for operation during power loss.
- Constant condition monitoring and smart diagnostics via integrated electronics.
- Rugged environmental protection with IP69K static and IP66 dynamic ratings.
- Low level motor switching and support for CANopen® or SAE J1939 bus systems.
Applications
- Automated guided vehicles and logistics trains.
- Mobile platforms such as boarding stairs and work platforms.
- Wheelchair lifts and accessibility aids.
- Agricultural and off-road equipment.
- General industrial automation and assembly systems.
Performance Specifications
| Product No. | Input Voltages (VDC) | Min/Max Stroke Length: mm | Max Dynamic Load: N (lbs) | Max Static Load: N (lbs) | Max No-Load Speed: mm/s (in/s) | Max Full-Load Speed: mm/s (in/s) | Current Draw @ no load / max load | Protection Class: static / dynamic |
|---|---|---|---|---|---|---|---|---|
| B055 | 24 Vdc tolerance (18-32) 48 Vdc tolerance (36-60) | 1200 | 5500 (1236) | 11000 (2472) | 24V 65 (2.56) 48V 75 (2.95) | 24V 65 (2.56) 48V 75 (2.95) | 24VDC/30A, 48VDC/15A | IP66, IP67, IP69K / IP66 |
| B080 | 24 Vdc tolerance (18-32) 48 Vdc tolerance (36-60) | 1200 | 8000 (1798) | 16000 (3596) | 24V 50 (1.97) 48V 50 (1.97) | 24V 50 (1.97) 48V 50 (1.97) | 24VDC/30A, 48VDC/15A | IP66, IP67, IP69K / IP66 |
| B160 | 24 Vdc tolerance (18-32) 48 Vdc tolerance (36-60) | 1000 | 16000 (3596) | 32000 (7193) | 24V 25 (0.98) 48V 25 (0.98) | 24V 25 (0.98) 48V 25 (0.98) | 24VDC/30A, 48VDC/15A | IP66, IP67, IP69K / IP66 |
| B200 | 24 Vdc tolerance (18-32) 48 Vdc tolerance (36-60) | 800 | 20000 (4496) | 32000 (7193) | 24V 16 (0.63) 48V 20 (0.79) | 24V 16 (0.63) 48V 20 (0.79) | 24VDC/30A, 48VDC/15A | IP66, IP67, IP69K / IP66 |
| B250 | 24 Vdc tolerance (18-32) 48 Vdc tolerance (36-60) | 650 | 25000 (5620) | 32000 (7193) | 24V 16 (0.63) 48V 16 (0.63) | 24V 16 (0.63) 48V 16 (0.63) | 24VDC/30A, 48VDC/15A | IP66, IP67, IP69K / IP66 |
