Stieber Built In Freewheels NFR
A bearing-supported, roller-type freewheel supplied without sealing

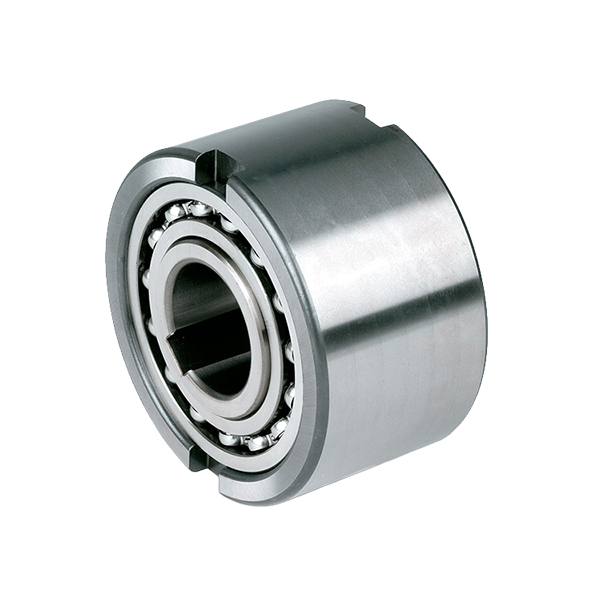

Type NFR is a bearing-supported, roller-type freewheel supplied without sealing. Lubrication and sealing must be provided by the installation, with oil used as standard lubrication. Sizes 8 to 20 utilise steel-on-steel bearing support from the inner race. For sizes above 25, two 160 series ball bearings are incorporated, allowing for higher overrunning speed capacity. A typical installation arrangement is shown in the technical documentation.
The inner race is keyed to the shaft, while the outer race has a positive n6 tolerance to achieve a press fit in an H7 housing. Additional side notches are provided for positive torque transmission. The housing must be sufficiently rigid to prevent expansion after assembly.

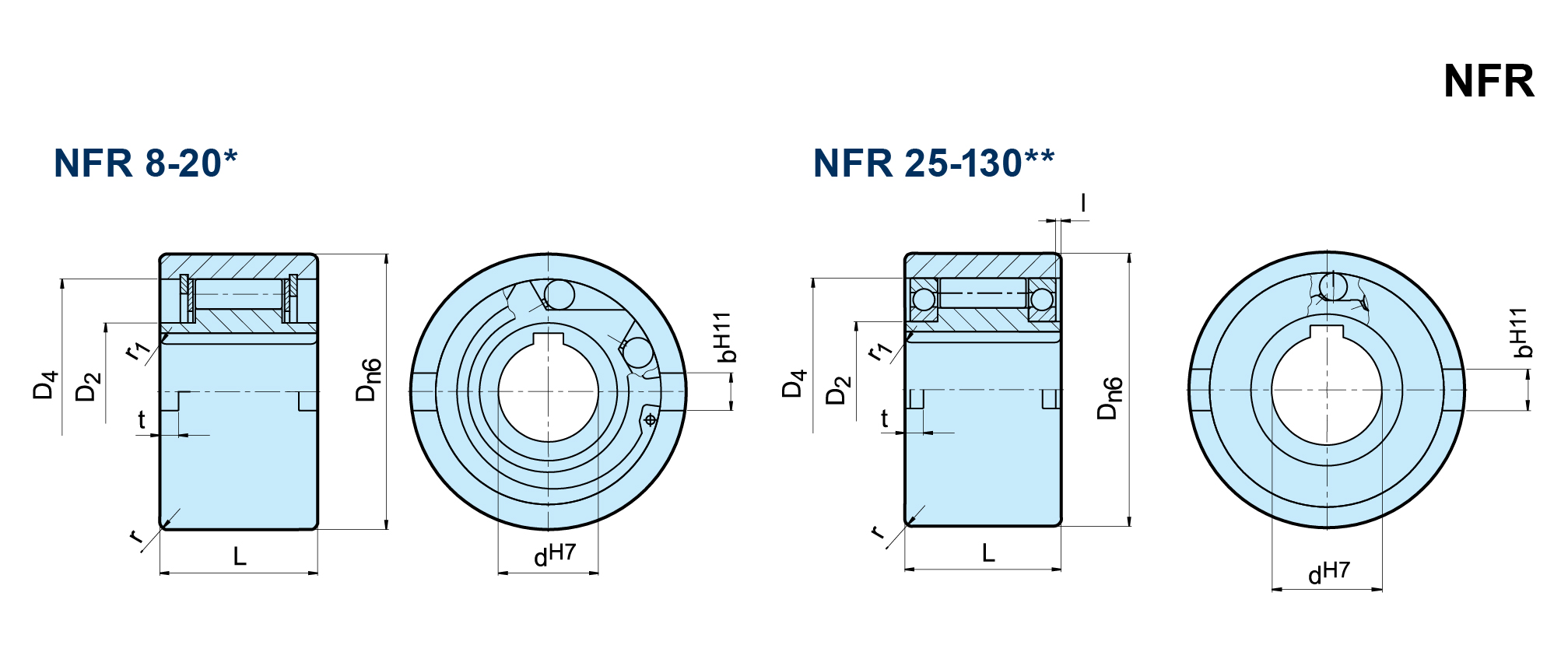

| dH7 | Dn6 | D4 | D2 | L | I | t | bH11 | r | r1 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 37 | 30 | 20 | 20 | – | 3 | 6 | 1.0 | 1.5 | 0.1 |
| 12 | 37 | 30 | 20 | 20 | – | 3 | 6 | 1.0 | 1.5 | 0.1 |
| 15 | 47 | 37 | 26 | 30 | – | 3.5 | 7 | 1.5 | 1.5 | 0.3 |
| 20 | 62 | 52 | 37 | 36 | – | 3.5 | 8 | 2.0 | 2.0 | 0.6 |
| 25 | 80 | 68 | 40 | 40 | 0.2 | 4 | 9 | 2.5 | 2.0 | 1.2 |
| 30 | 90 | 75 | 45 | 48 | 0.2 | 5 | 12 | 2.5 | 2.0 | 1.8 |
| 35 | 100 | 80 | 50 | 53 | 1.2 | 6 | 13 | 2.5 | 2.5 | 2.4 |
| 40 | 110 | 90 | 55 | 63 | 2.2 | 7 | 15 | 3.0 | 2.5 | 3.3 |
| 45 | 120 | 95 | 60 | 63 | 2.2 | 7 | 16 | 3.0 | 2.5 | 4.0 |
| 50 | 130 | 110 | 70 | 80 | 2.7 | 8.5 | 17 | 3.5 | 3.0 | 5.7 |
| 55 | 140 | 115 | 75 | 80 | 4.2 | 9 | 18 | 3.5 | 3.0 | 6.5 |
| 60 | 150 | 125 | 80 | 95 | 3.2 | 9 | 18 | 3.5 | 3.5 | 8.9 |
| 70 | 170 | 140 | 90 | 110 | 1.1 | 9 | 20 | 3.5 | 3.5 | 13.5 |
| 80 | 190 | 160 | 105 | 125 | 0 | 9 | 20 | 4.0 | 3.5 | 19.0 |
| 90 | 215 | 180 | 120 | 140 | 0.6 | 11.5 | 24 | 4.0 | 4.0 | 27.2 |
| 100 | 260 | 210 | 140 | 150 | 2.6 | 14.5 | 28 | 4.0 | 4.0 | 44.5 |
| 130 | 300 | 240 | 160 | 180 | 2 | 17 | 32 | 5.0 | 5.0 | 68.0 |
