INTORQ BFK470 Industrial Brakes

For harsh operating conditions

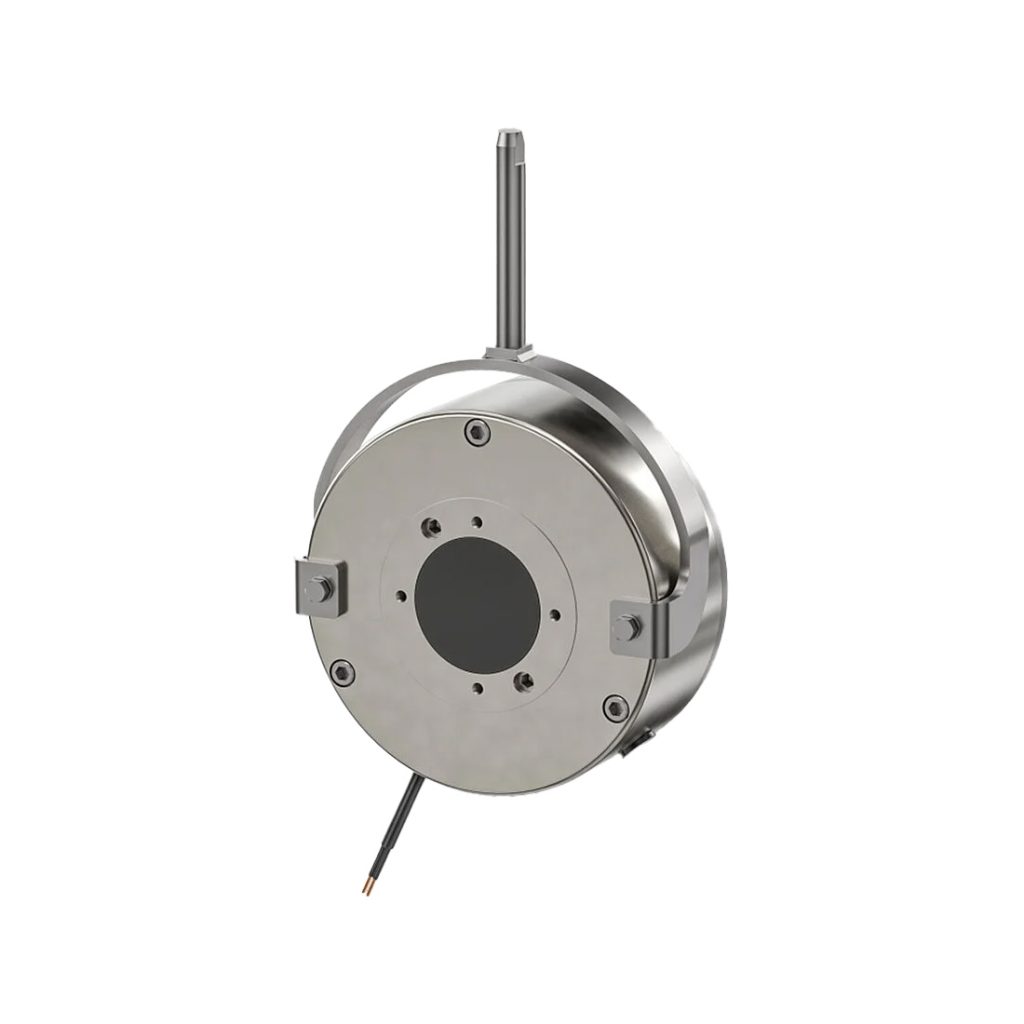

BFK470 Spring-Applied Single-Disc Brake Intorq

Whenever the going gets tough, our BFK470 spring-applied brakes promise reliable performance. We have designed this IP66-sealed product line especially for dusty or humid operating conditions – such as wind power or crane facilities. Even extreme temperatures don’t bother these brakes. They feature consistent protection and a unique modularity. You benefit from optimal versatility by using components which are freely configurable with each other. In other words, you get many variation options, all with rapid delivery times.

Features

  • 7 sizes
  • Inductive proximity sensor for functional monitoring
  • Increased maximum torques and long service life thanks to the optimized mechanical construction
DescriptionValue
Braking torque range2 Nm to 370 Nm
Voltage24 V, 103 V, 180 V, 205 V
Temperature classF (155°C)
Protection ClassIP66
Corrosion protectionC3 optional C4/C5
