INTORQ BFK468 Industrial Brakes

Powerful and responsive

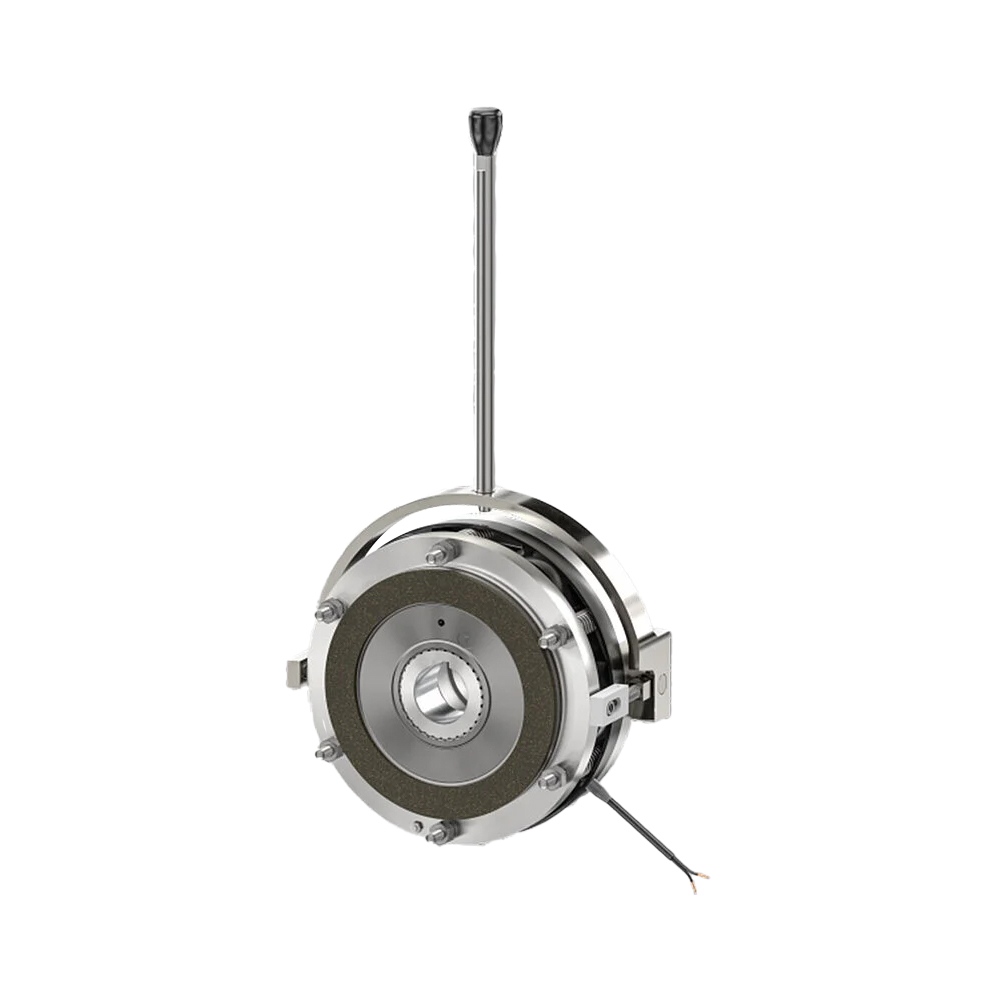

csm spring-applied Brake Intorq BFK468

High-performance drives are introducing completely new requirements for brake technology. On the one hand, the motor speeds and drive torques are constantly increasing. On the other hand, the installation space for the brake is shrinking. So, brakes are preferred which are both very efficient and require little space. The INTORQ BFK468 multi-pole spring-applied brakes meet precisely these requirements. Taking advantage of modern multi-coil technology, it reliably ventilates through its large air gap even when operating under strong forces. This level of performance is second to none!

Features

  • Spring-applied brake with multi-coil system
  • With fixed/preset or adjustable braking torque
  • High magnetic flux forces using special control mechanism
  • Fast operating times thanks to low brake inductance
  • Long maintenance intervals thanks to the large working air gap
  • Micro-switch monitoring of release or wear
DescriptionValue
Braking torque range100 Nm to 2.400 Nm
DC voltage205/103 V, 360/180 V
Temperature classF (155°C)
